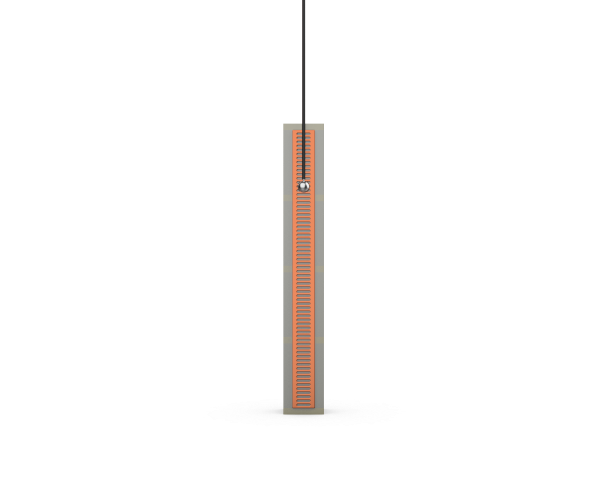

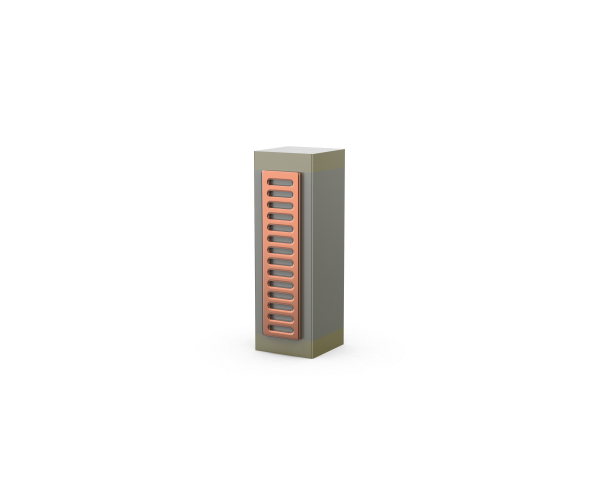

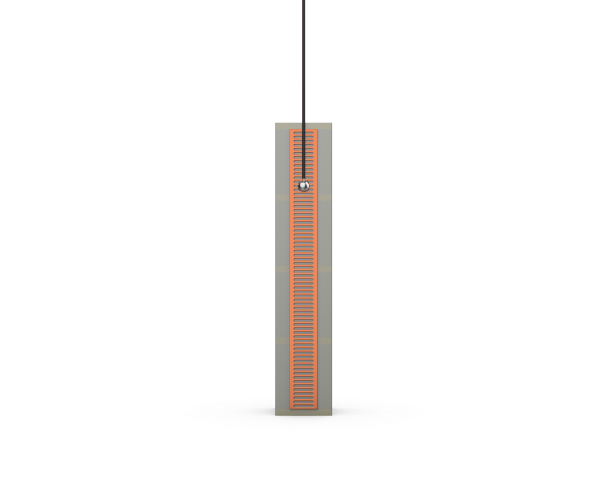

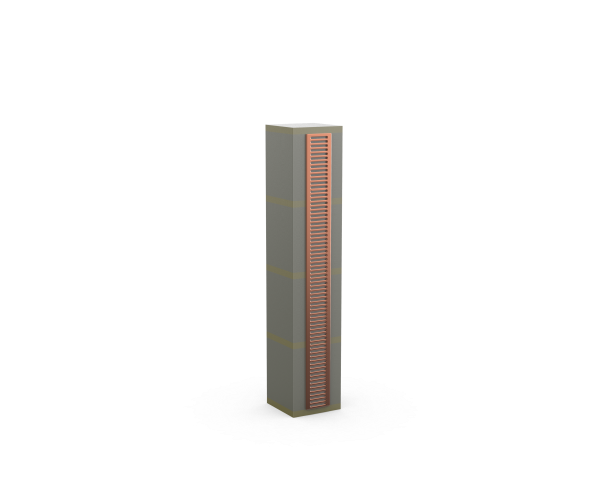

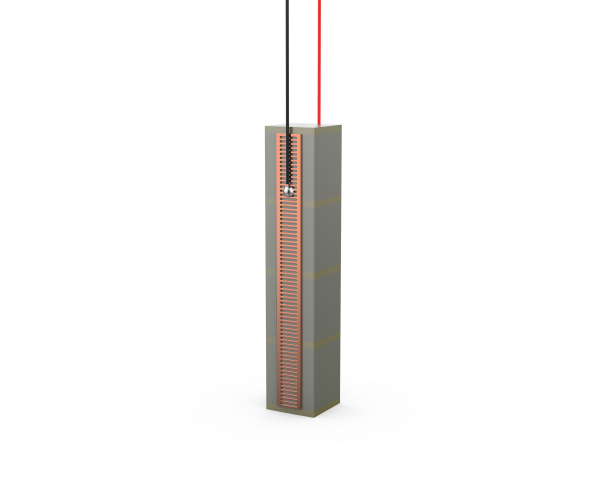

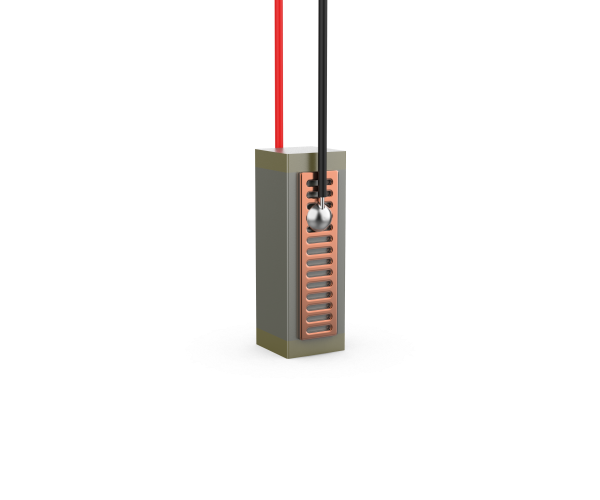

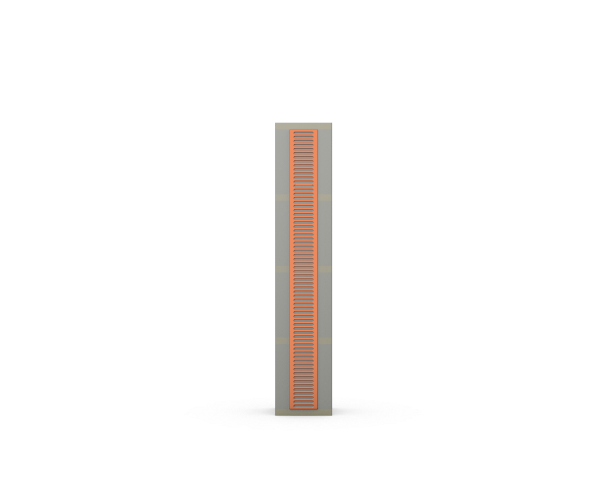

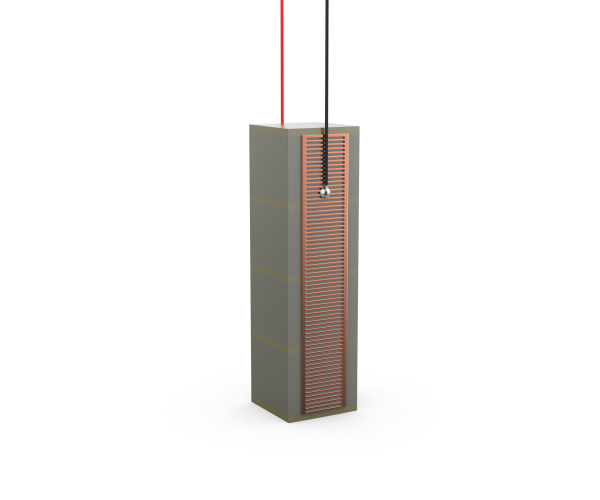

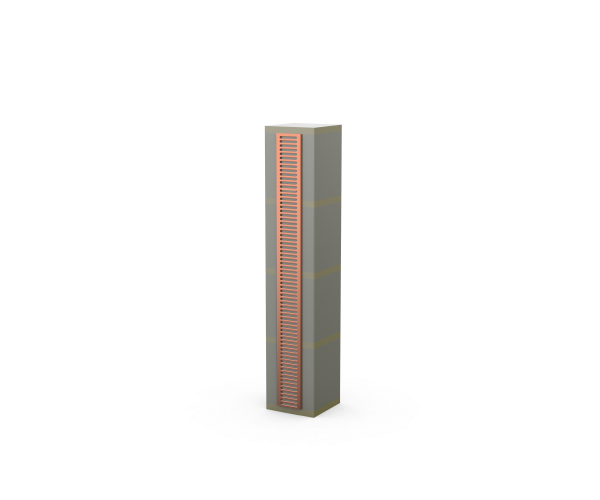

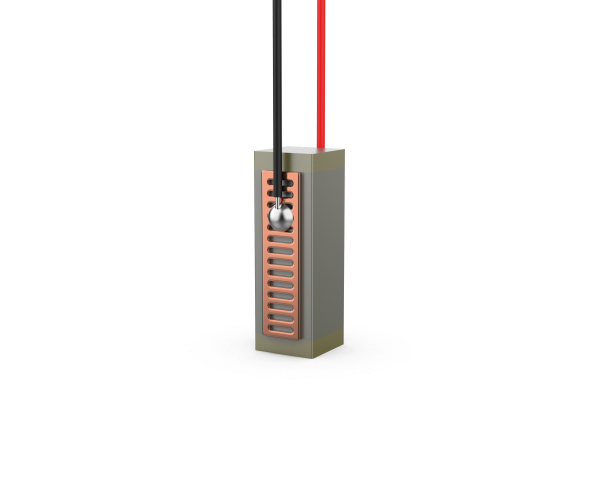

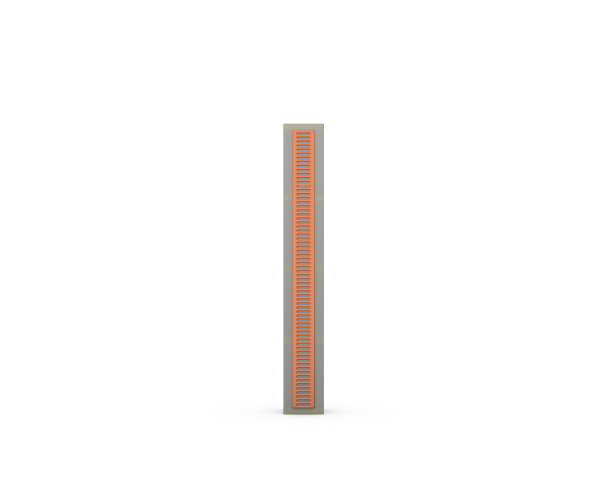

共烧式压电执行器
| 共烧型压电陶瓷执行器规格系列 Co-fired multilayer piezoelectric actuators | |||||||
| 规格型号 Specification | 尺寸 Dimensions ±0.1(mm) | 静态电容 Electrical Capacitance ±20％（uF） | 电压 voltage （V） | 谐振频率 Resonant frequency ±20%（kHz） | 位移 Displacement ±10%（μm） | 刚度 Stiffness （N/μm） | 推力 Blocking force （N） |
| WHG1/1A | 1×1×1 | 0.05 | 3~5V | 950 | 0.1 | 300 | 30 |
| WHG2/2A | 2×2×2 | 0.22 | 50 | 550 | 2.3 | 100 | 150 |
| WHG3/9A | 3×3×9 | 0.35 | 120 | 135 | 8 | 40 | 300 |
| WHG3/13.5A | 3×3×13.5 | 0.45 | 120 | 110 | 11 | 28 | 300 |
| WHG3/18A | 3×3×18 | 0.58 | 120 | 70 | 16 | 18 | 300 |
| WHG5/9A | 5×5×9 | 1 | 120 | 135 | 8 | 100 | 900 |
| WHG5/18A | 5×5×18 | 1.8 | 120 | 70 | 16 | 45 | 900 |
| WHG5/36A | 5×5×36 | 3.7 | 120 | 38 | 36 | 20 | 900 |
| WHG7/18A | 7×7×18 | 3.8 | 120 | 70 | 18 | 100 | 1800 |
| WHG7/36A | 7×7×36 | 7.2 | 120 | 38 | 36 | 45 | 1800 |
| WHG10/20A | 10×10×20 | 6.2 | 120 | 65 | 20 | 190 | 3800 |
| WHG14/10A | 14×14×10 | 6.3 | 120 | 100 | 10 | 730 | 7500 |
| 其余规格均可定制 All other specifications can be customized | |||||||
| 共烧型压电陶瓷执行器规格系列 Co-fired multilayer piezoelectric actuators | |||||||
| 规格型号 Specification | 尺寸 Dimensions ±0.1(mm) | 静态电容 Electrical Capacitance ±20％（uF） | 电压 voltage （V） | 谐振频率 Resonant frequency ±20%（kHz） | 位移 Displacement ±10%（μm） | 刚度 Stiffness （N/μm） | 推力 Blocking force （N） |
| WHG3/9C | 3×3×9 | 0.3 | 150 | 135 | 8 | 40 | 300 |
| WHG3/13.5C | 3×3×13.5 | 0.4 | 150 | 110 | 11 | 28 | 300 |
| WHG3/18C | 3×3×18 | 0.5 | 150 | 70 | 17 | 18 | 300 |
| WHG5/9C | 5×5×9 | 0.8 | 150 | 135 | 8 | 100 | 900 |
| WHG5/18C | 5×5×18 | 1.5 | 150 | 70 | 18 | 45 | 900 |
| WHG5/36C | 5×5×36 | 3.1 | 150 | 38 | 38 | 20 | 900 |
| WHG7/18C | 7×7×18 | 3.2 | 150 | 70 | 18 | 100 | 1800 |
| WHG7/36C | 7×7×36 | 6.4 | 150 | 38 | 38 | 45 | 1800 |
| WHG10/20A | 10×10×20 | 5.4 | 150 | 65 | 20 | 190 | 3800 |
| WHG14/10A | 14×14×10 | 5.5 | 150 | 100 | 10 | 730 | 7500 |
| 其余规格均可定制 All other specifications can be customized | |||||||
